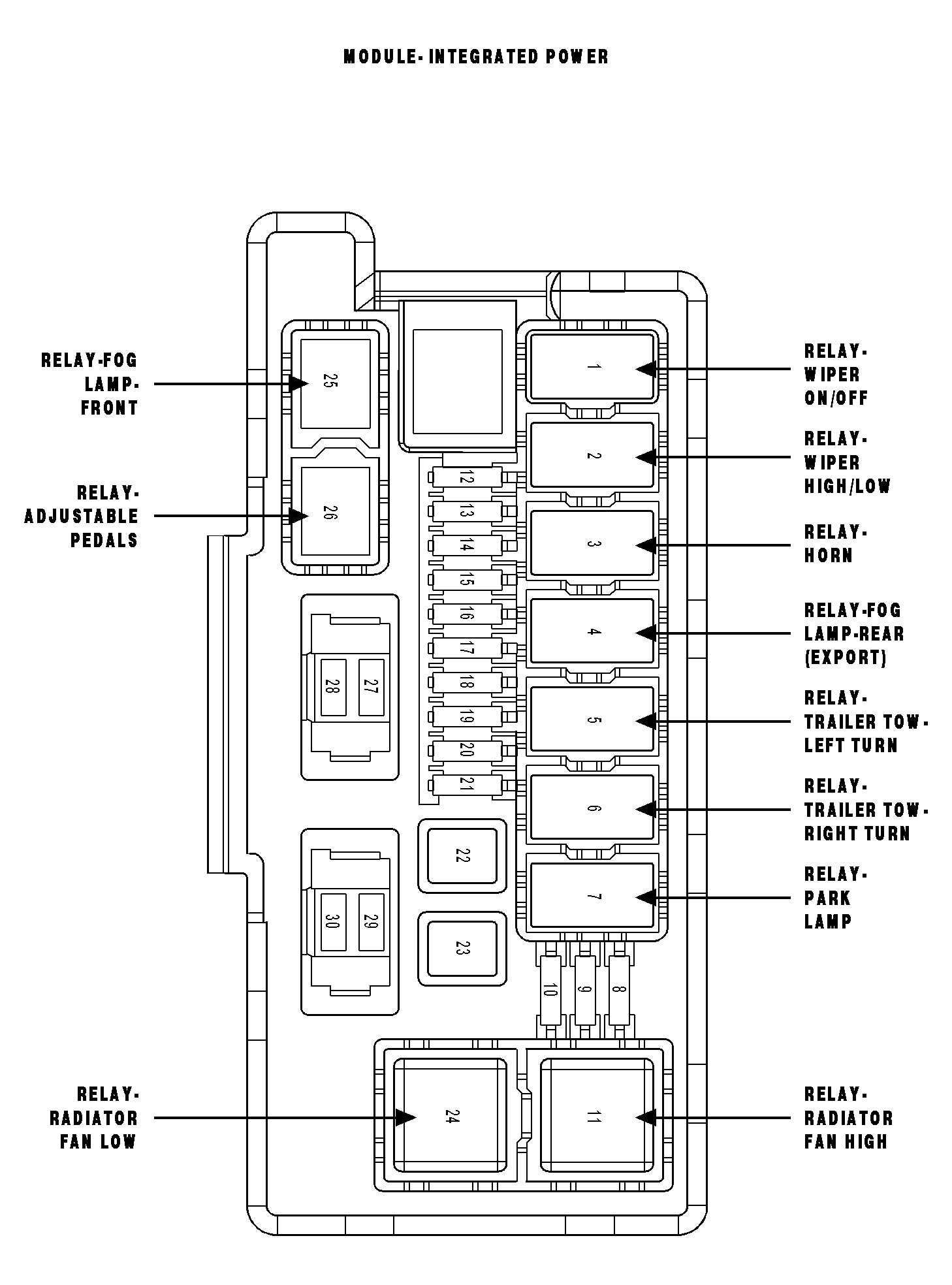

Park Lamp Relay Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
RELAY-PARK LAMP
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
L678 08BR |
PARK LAMP RELAY OUTPUT |
| 85 |
L779 20WT/LB |
PARK LAMP RELAY CONTROL |
| 86 |
A1 06RD |
B(+) |
| 87 |
A1 06RD |
B(+) |
| 87A |
Z387 20BK |
GROUND |
