Park Assist Sensor 7 (Rear Park Assist) Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

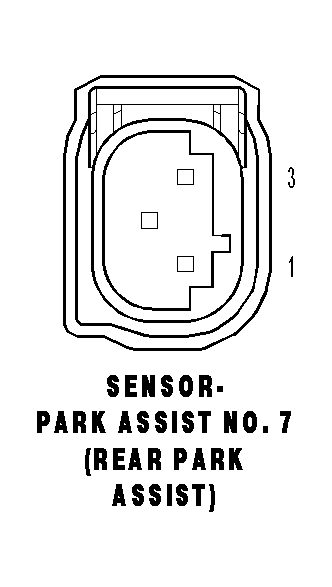

SENSOR-PARK ASSIST NO. 7 (REAR PARK ASSIST) - 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
D700 20WT/DG |
PARK ASSIST SENSOR NO. 7 SIGNAL |
| 2 |
X750 20GY/LB |
PARK ASSIST SENSOR GROUND |
| 3 |
X700 20GY/OR |
PARK ASSIST SENSOR SUPPLY |
