Park Assist Sensor 5 (Front Park Assist) Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

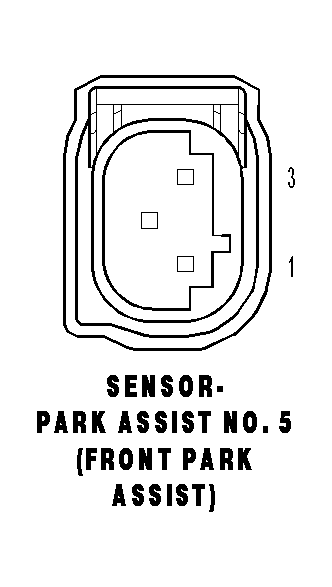

SENSOR-PARK ASSIST NO. 5 (FRONT PARK ASSIST) - 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
D708 20WT/LB |
PARK ASSIST SENSOR NO. 5 SIGNAL |
| 2 |
Z169 20BK/LG |
GROUND |
| 3 |
X702 20GY/LB |
FRONT PARK ASSIST SENSOR SUPPLY |
