Park Assist Module (Park Assist) Connector End View (C1)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

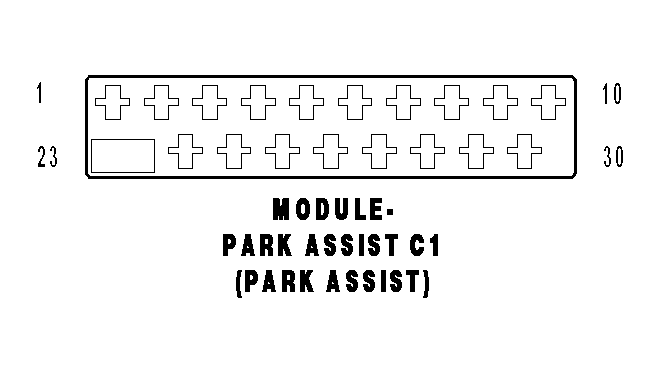

MODULE-PARK ASSIST C1 (PARK ASSIST) - 18 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | - | - |
| 3 | D703 20WT/OR | PARK ASSIST SENSOR NO. 9 SIGNAL |
| 4 | D700 20WT/DG | PARK ASSIST SENSOR NO. 7 SIGNAL |
| 5 | D54 20WT | CAN B BUS (-) |
| 6 | D55 20WT/OR | CAN B BUS (+) |
| 7 | - | - |
| 8 | X750 20GY/LB | PARK ASSIST SENSOR GROUND |
| 9 | Z171 20GY/BK | GROUND |
| 10 | Z913 20BK | GROUND |
| 23 | D704 20WT/DB | PARK ASSIST SENSOR NO. 10 SIGNAL |
| 24 | D701 20WT/LB | PARK ASSIST SENSOR NO. 8 SIGNAL |
| 25 | D777 20WT/GY | REAR PARK ASSIST DISPLAY SIGNAL |
| 26 | - | - |
| 27 | - | - |
| 28 | X700 20GY/OR | PARK ASSIST SENSOR SUPPLY |
| 29 | X777 20LG/GY | PARK ASSIST DISPLAY SUPPLY |
| 30 | F921 20PK/GY | FUSED RUN RELAY OUTPUT |
