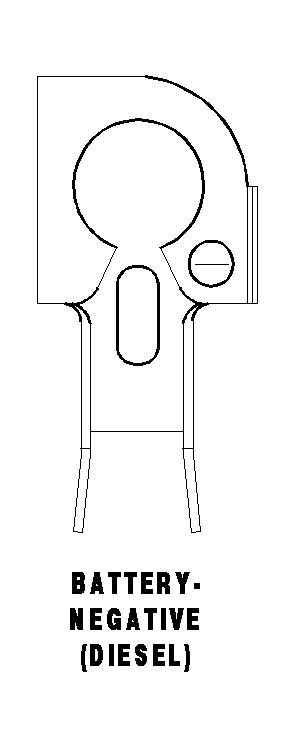

Negative Battery (Diesel) Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

BATTERY-NEGATIVE (DIESEL) - 1 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z1 04BK	GROUND
1	Z100 04BK/VT	GROUND
