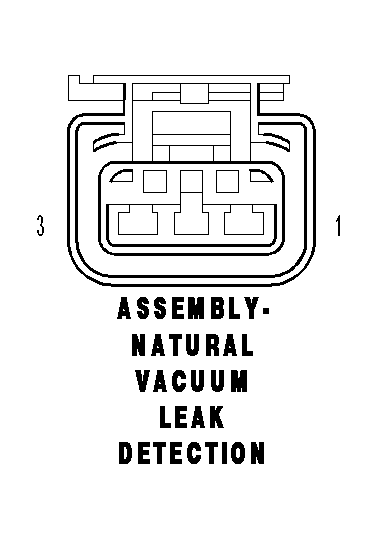

Natural Vacuum Leak Detection Assembly Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

ASSEMBLY-NATURAL VACUUM LEAK DETECTION - 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z912 18BK	GROUND
2	K107 20BR/LB	NVLD SWITCH SIGNAL
3	K106 20VT/LB	NVLD SOL CONTROL
