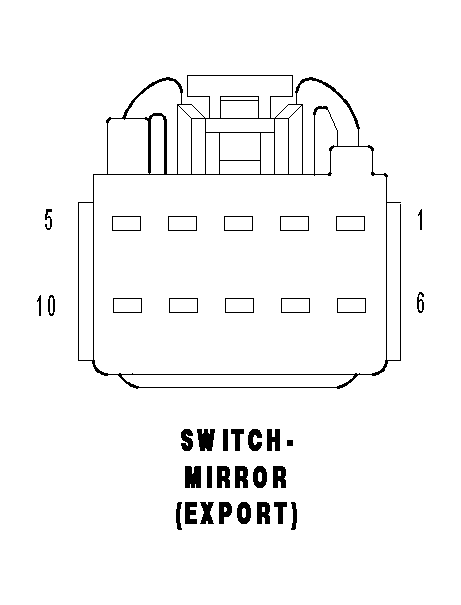

Mirror Switch (Export) Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
SWITCH-MIRROR (EXPORT) - 10 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P110 20LB/WT | FOLDING MIRROR RETURN |
| 2 | A929 16RD/DB | FUSED RUN/ACCESSORY RELAY OUTPUT |
| 3 | P76 20TN/LB | MIRROR COMMON DRIVER |
| 4 | Z911 20BK | GROUND |
| 5 | A931 20RD/WT | FUSED B(+) |
| 6 | P706 20LG/GY | MIRROR VERTICAL UP SWITCH SENSE |
| 7 | P705 20LG/OR | MIRROR VERTICAL DOWN SWITCH SENSE |
| 8 | P704 20LG/TN | MIRROR HORIZONTAL RIGHT SWITCH SENSE |
| 9 | P703 20DB/LG | MIRROR HORIZONTAL LEFT SWITCH SENSE |
| 10 | P699 20LG/YL | MIRROR-POWER FOLDING/UNFOLDING |
