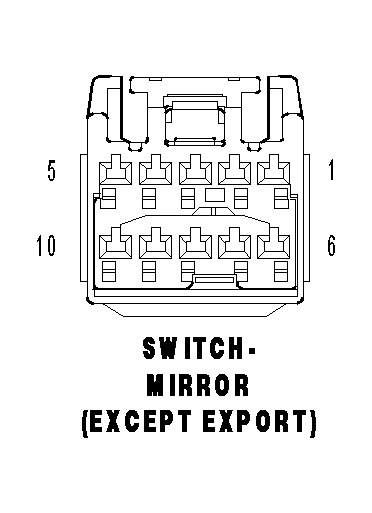

Mirror Switch (Except Export) Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
SWITCH-MIRROR (EXCEPT EXPORT) - 10 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | A929 16RD/DB | FUSED RUN/ACCESSORY RELAY OUTPUT |
| 3 | P76 20TN/LB | MIRROR COMMON DRIVER |
| 4 | Z911 20BK | GROUND |
| 5 | A931 20RD/WT | FUSED B(+) |
| 6 | P72 20TN/GY (EXCEPT PREMIUM) | PASSENGER MIRROR VERTICAL DRIVER |
| 6 | P706 20LG/GY (PREMIUM) | MIRROR VERTICAL UP SWITCH SENSE |
| 7 | P71 20 TN/DG (EXCEPT PREMIUM) | DRIVER MIRROR VERTICAL DRIVER |
| 7 | P705 20LG/OR (PREMIUM) | MIRROR VERTICAL DOWN SWITCH SENSE |
| 8 | P74 20 TN/OR (EXCEPT PREMIUM) | PASSENGER MIRROR HORIZONTAL DRIVER |
| 8 | P704 20LG/TN (PREMIUM) | MIRROR HORIZONTAL RIGHT SWITCH SENSE |
| 9 | P75 20 TN/LG (EXCEPT PREMIUM) | DRIVER MIRROR HORIZONTAL DRIVER |
| 9 | P703 20DB/LG (PREMIUM) | MIRROR HORIZONTAL LEFT SWITCH SENSE |
| 10 | - | - |
