Memory Seat Module (LHD) Connector End View (C5)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

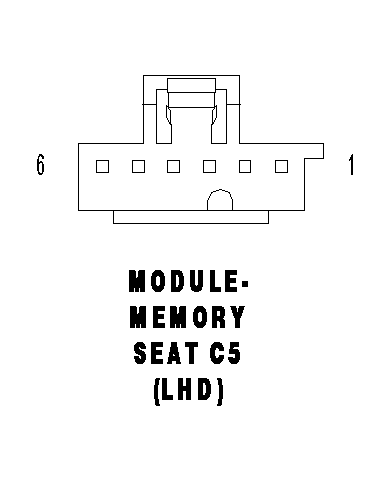

MODULE-MEMORY SEAT C5 (LHD) - 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
- |
- |
| 3 |
- |
- |
| 4 |
Q102 20OR/DB |
ADJUSTABLE PEDALS SWITCH FORWARD |
| 5 |
Q103 20OR/LG |
ADJUSTABLE PEDALS SWITCH REARWARD |
| 6 |
Q101 20OR/LB |
ADJUSTABLE PEDALS SWITCH GROUND |
