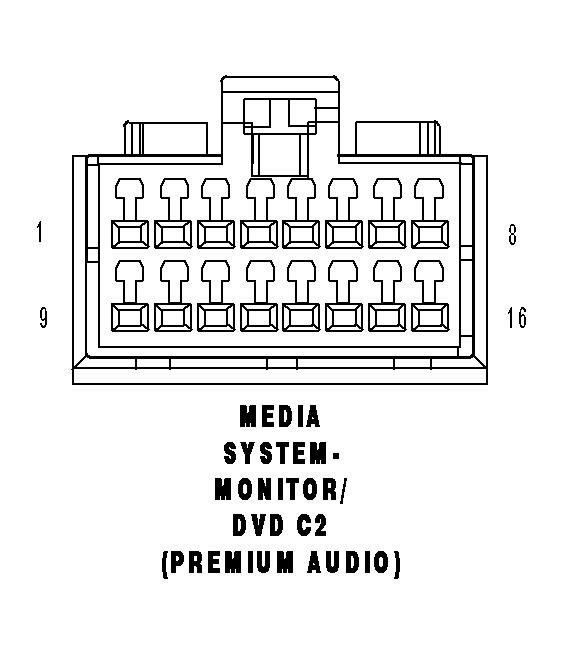

Media Monitor/DVD System (Premium Audio) Connector End View (C2)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
MEDIA SYSTEM-MONITOR/DVD C2 (PREMIUM AUDIO) - 16 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | X114 20GY/LB | FUSED B (+) |
| 2 | X523 20GY/LB | REMOTE CONTROL FUNCTION 1 |
| 3 | D91 20WT/DB | COM - BMM1 ADDRESS |
| 4 | - | - |
| 5 | - | - |
| 6 | - | - |
| 7 | X915 20GY/LG | VIDEO RETURN |
| 8 | X515 20GY/OR | VIDEO SIGNAL |
| 9 | Z915 20BK | GROUND |
| 10 | X524 20GY/YL | REMOTE CONTROL FUNCTION 2 |
| 11 | D92 20WT | COM - BMM2 ADDRESS |
| 12 | X555 20VT/OR | VIDEO PLAY SIGNAL |
| 13 | - | - |
| 14 | - | - |
| 15 | - | - |
| 16 | X955 20BK/GY | SHIELD |
