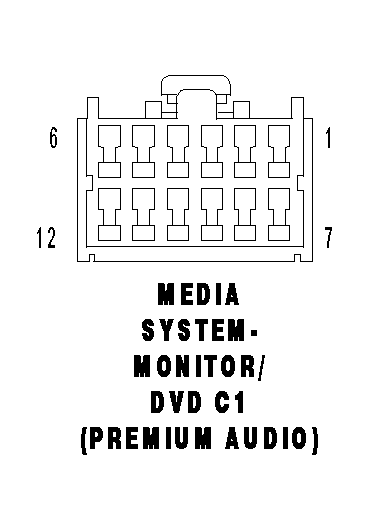

Media Monitor/DVD System (Premium Audio) Connector End View (C1)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
MEDIA SYSTEM-MONITOR/DVD C1 (PREMIUM AUDIO) - 12 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | X510 20DG/LB | RIGHT AUDIO AUX |
| 2 | X926 20GY/OR | AUDIO OUT GROUND |
| 3 | X521 20GY/LB | LEFT AUDIO AUX |
| 4 | X207 20GY/LB | SHIELD |
| 5 | X407 20GY/LB | SHIELD |
| 6 | A114 20GY/RD | FUSED B(+) |
| 7 | X511 20GY/LG | LEFT AUDIO AUX |
| 8 | X910 20GY/DG | AUX AUDIO RETURN/COMMON |
| 9 | X522 20GY/DB | RIGHT AUDIO AUX |
| 10 | D55 20WT/OR | CAN B BUS (+) |
| 11 | D54 20WT | CAN B BUS (-) |
| 12 | Z915 20BK | GROUND |
