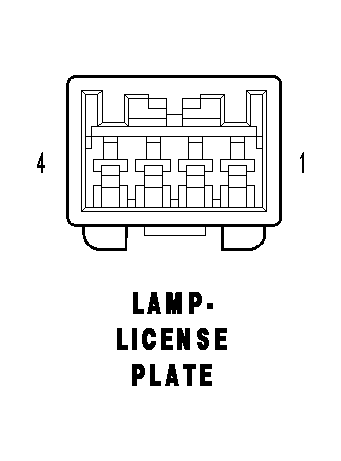

License Plate Lamp Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

LAMP-LICENSE PLATE - 4 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	L777 20WT/VT	FUSED PARK LAMP RELAY OUTPUT
2	Z800 20BK	GROUND
3	Q80 20OR/VT	FLIP-UP GLASS SWITCH SENSE
4	-	-
