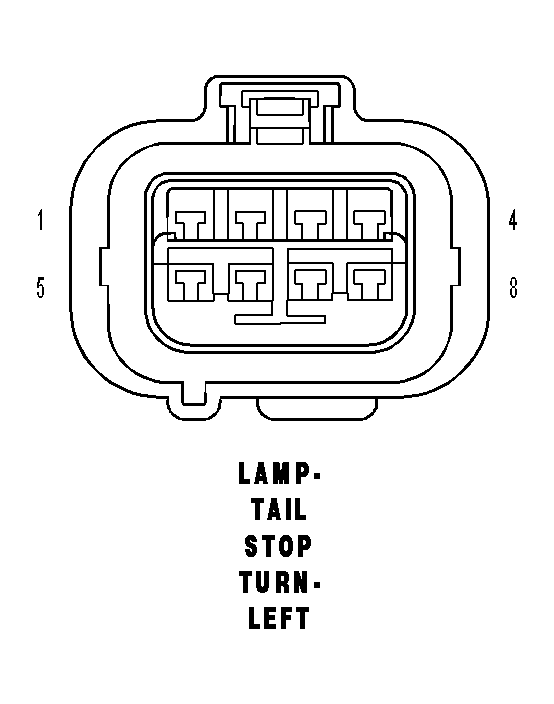

Left Tail Stop Lamp/Turn Lamp Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
LAMP-TAIL STOP TURN-LEFT - 8 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | L50 18WT/TN | BRAKE LAMP SWITCH OUTPUT |
| 2 | A35 18RD/DG (EXPORT) | FUSED B(+) |
| 3 | L614 18WT/DB (EXCEPT EXPORT) | TRAILER TOW TURN SIGNAL |
| 4 | L615 18WT/YL (EXCEPT EXPORT) | TRAILER TOW TURN SIGNAL |
| 5 | L777 20WT/BR | FUSED PARK LAMP RELAY OUTPUT |
| 6 | L1 18WT/LG | BACK-UP LAMP FEED |
| 7 | L63 18WT/DG | LEFT REAR TURN SIGNAL CONTROL |
| 8 | Z918 16BK | GROUND |
