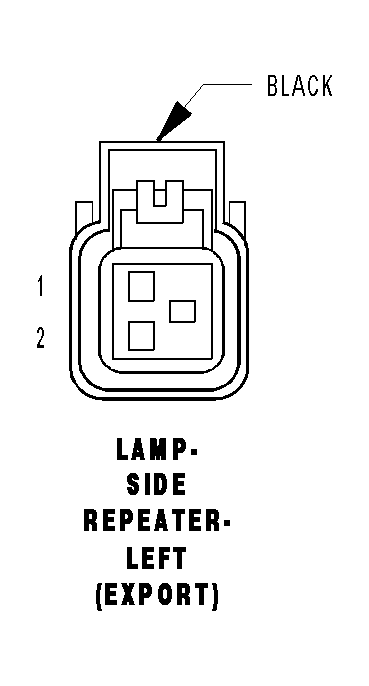

Left Side Repeater Lamp (Export) Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

LAMP-SIDE REPEATER-LEFT (EXPORT) - BLACK 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	L61 18WT/LG	LEFT TURN SIGNAL
2	Z910 20BK	GROUND
