Left Seat Back Component Side Heater Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

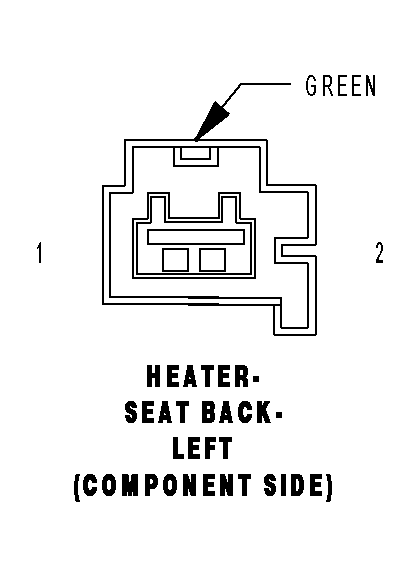

HEATER-SEAT BACK-LEFT (COMPONENT SIDE) - GREEN 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	18BK	GROUND
2	18LG/RD	LEFT SEAT HEATER B(+) DRIVER
