Left Rear Oxygen Sensor (4.7L) Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

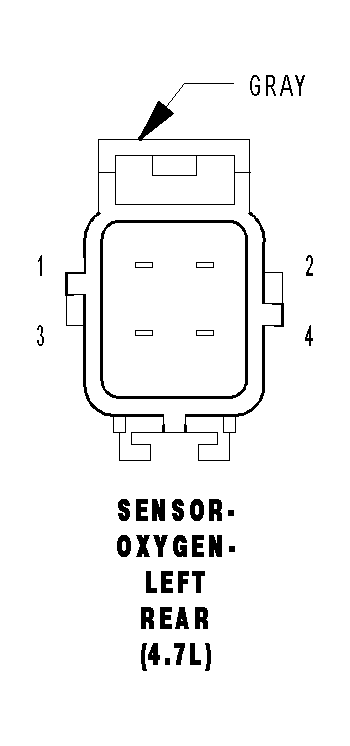

SENSOR-OXYGEN-LEFT REAR (4.7L) - GRAY 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z42 18BK/LG |
GROUND |
| 2 |
K299 18BR/OR |
O2 1/2 HEATER CONTROL |
| 3 |
K904 20DB/WT |
O2 RETURN (DOWNSTREAM) |
| 4 |
K141 20DB/YL |
02 1/2 SIGNAL |
