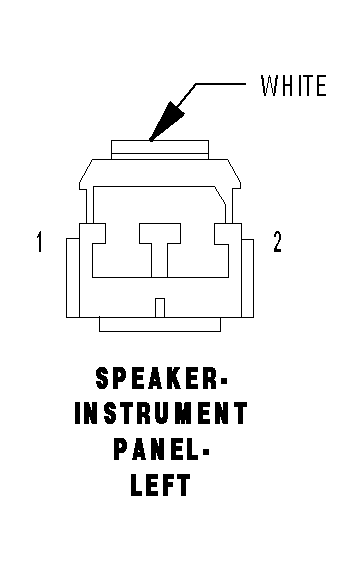

Left Instrument Panel Speaker Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
SPEAKER-INSTRUMENT PANEL-LEFT - WHITE 2 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | X55 18DG/BR (EXCEPT PREMIUM AUDIO) | LEFT FRONT SPEAKER (-) |
| 1 | X299 18GY/YL (PREMIUM AUDIO) | AMPLIFIED LEFT I/P SPEAKER (-) |
| 2 | X53 18DG (EXCEPT PREMIUM AUDIO) | LEFT FRONT SPEAKER (+) |
| 2 | X209 18GY/OR (PREMIUM AUDIO) | AMPLIFIED LEFT I/P SPEAKER (+) |
