Left Headlamp Lamp Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

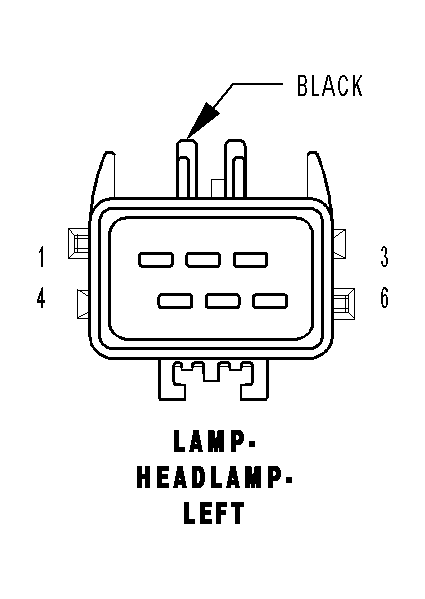

LAMP-HEADLAMP-LEFT - BLACK 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
L33 18WT/OR |
LEFT HIGH BEAM DRIVER |
| 2 |
L43 18WT/DB |
LEFT LOW BEAM DRIVER |
| 3 |
L61 18WT/LG |
LEFT TURN SIGNAL |
| 4 |
L777 20WT/BR |
FUSED PARK LAMP RELAY OUTPUT |
| 5 |
L13 20WT/YL (EXPORT) |
HEADLAMP LEVEL SENSOR SIGNAL |
| 6 |
Z910 18BK |
GROUND |
