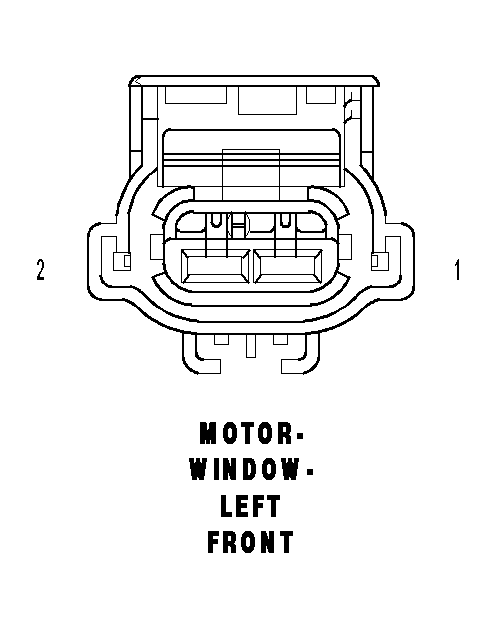

Left Front Window Motor Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

MOTOR-WINDOW-LEFT FRONT - 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Q11 16OR/LG	DRIVER WINDOW DRIVER (UP)
2	Q21 16OR/WT	DRIVER WINDOW DRIVER (DOWN)
