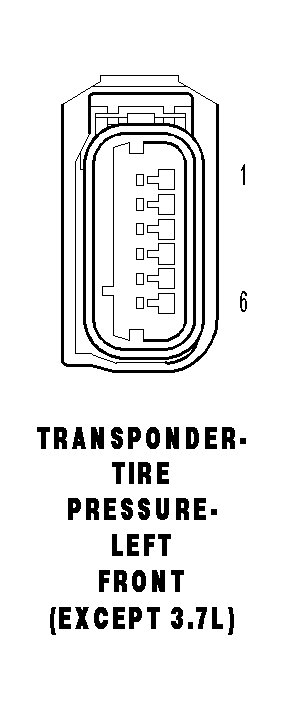

Left Front Tire Pressure Transponder (Except 3.7L) Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
TRANSPONDER-TIRE PRESSURE-LEFT FRONT (EXCEPT 3.7L) - 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
F924 20PK/YL |
FUSED IGNITION SWITCH OUTPUT (RUN) |
| 2 |
D508 20WT/TN |
COM - LIN TIRE PRESSURE MONITOR LAN |
| 3 |
Z924 20BK/OR |
GROUND |
| 4 |
Z924 20BK/YL |
GROUND |
| 5 |
- |
- |
| 6 |
- |
- |
