Left Front Oxygen Sensor (4.7L) Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

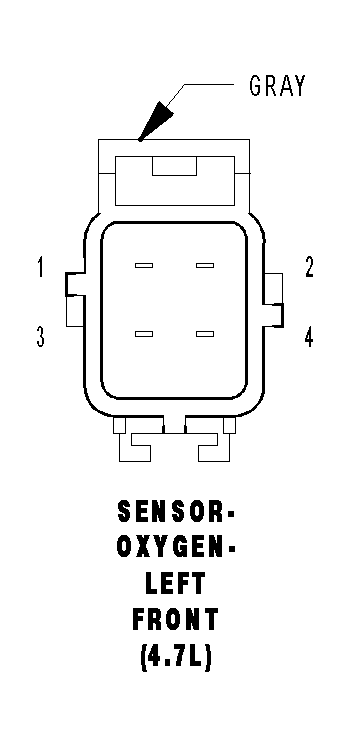

SENSOR-OXYGEN-LEFT FRONT (4.7L) - GRAY 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z42 18BK/LG |
GROUND |
| 2 |
K99 20OR/TN |
O2 1/1 HEATER CONTROL |
| 3 |
K902 20BR/DG |
02 RETURN (UPSTREAM) |
| 4 |
K41 20DB/LB |
O2 1/1 SIGNAL |
