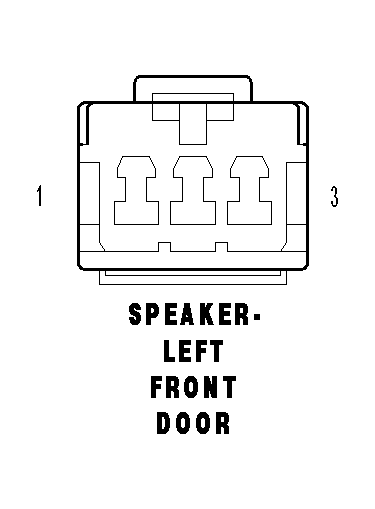

Left Front Door Speaker Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

SPEAKER-LEFT FRONT DOOR - 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	X291 18GY/YL	AMPLIFIED LEFT FRONT DOOR SPEAKER (-)
2	-	-
3	X201 18GY/VT	AMPLIFIED LEFT FRONT DOOR SPEAKER (+)
