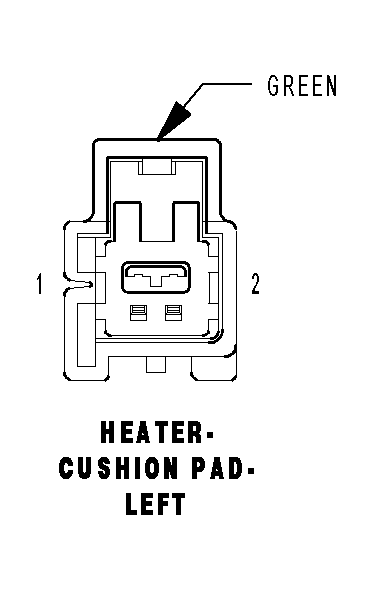

Left Cushion Pad Heater Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

HEATER-CUSHION PAD-LEFT - GREEN 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	P187 16LG/BR	LEFT SEAT HEATER B(+) DRIVER
2	Z911 16BK	GROUND
