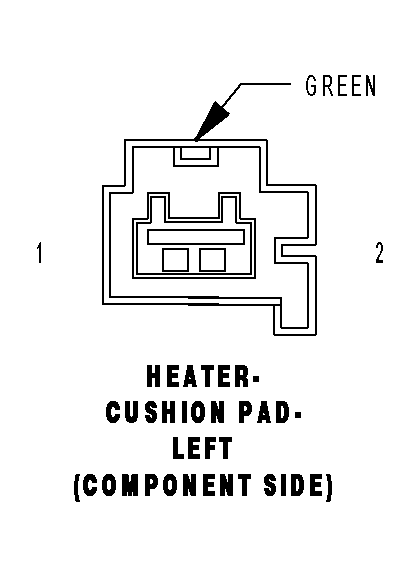

Left Cushion Pad Component Side Heater Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

HEATER-CUSHION PAD-LEFT (COMPONENT SIDE) - GREEN 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	18YL	LEFT SEAT HEATER B(+) DRIVER
2	18YL	GROUND
