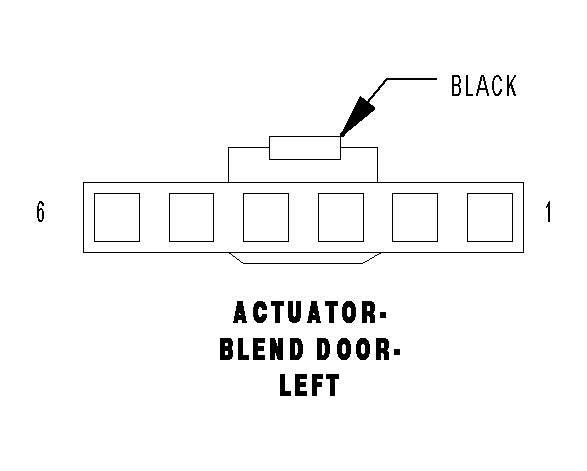

Left Blend Door Actuator Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

ACTUATOR-BLEND DOOR-LEFT - BLACK 6 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	-	-
3	-	-
4	-	-
5	C255 20LG/YL	LEFT BLEND DOOR DRIVER
6	C55 20LB/YL	LEFT BLEND DOOR COMMON DRIVER
