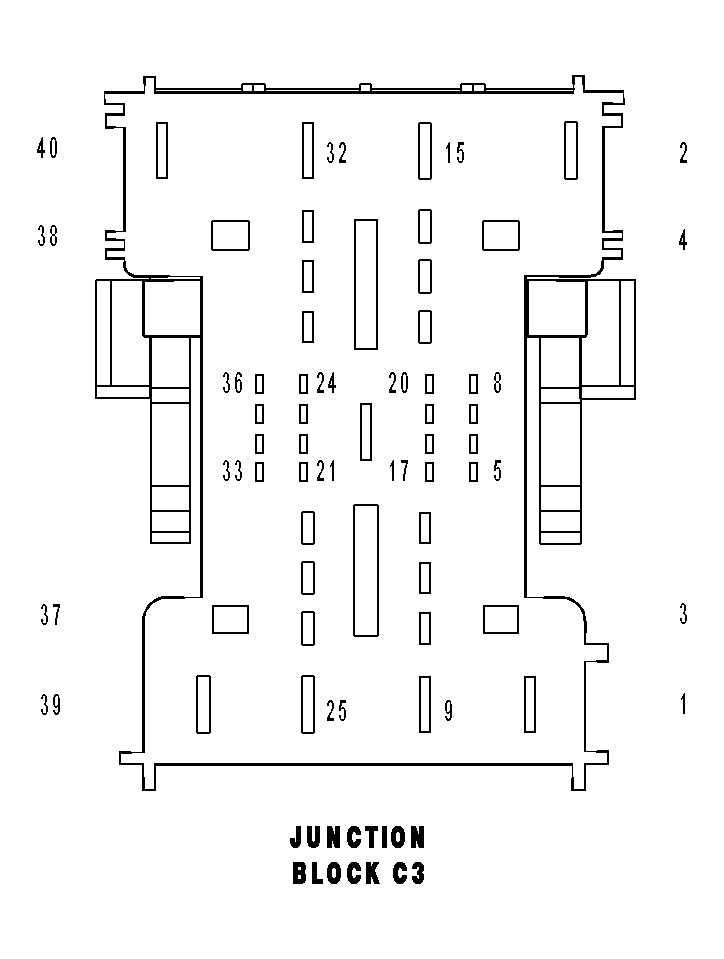

Junction Block Connector End View (C3)

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

JUNCTION BLOCK C3 - 40 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A929 16RD/DB	FUSED RUN/ACCESSORY RELAY OUTPUT
2	A33 16RD/YL (POWER SEATS)	FUSED B(+)
3	L50 18WT/TN	BRAKE LAMP SWITCH OUTPUT
4	-	-
5	-	-
6	A114 20OR/RD	FUSED B(+)
7	-	-
8	-	-
9	A929 16RD/LG	FUSED RUN/ACCESSORY RELAY OUTPUT
10	-	-
11	-	-
12	-	-
13	-	-
14	-	-
15	-	-
16	A33 16BK/RD	FUSED B(+)
17	-	-
18	A114 18GY/RD	FUSED B(+)
19	-	-
20	F921 20PK/YL	FUSED RUN RELAY OUTPUT
21	C17 20LB/WT	FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
22	-	-
23	-	-
24	-	-
25	Q81 18OR/GY	FLIP-UP GLASS RELAY OUTPUT
26	A931 20RD/WT	FUSED B(+)
27	A932 18RD/DG	FUSED B(+)
28	A46 18RD/GY	REAR WIPER RELAY OUTPUT
29	-	-
30	A934 18RD/OR	FUSED RUN/ACCESSORY RELAY OUTPUT
31	-	-
32	C515 12LB/OR	REAR WINDOW DEFOGGER RELAY OUTPUT
33	C17 20LB/DG	FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
34	P792 16LG/TN	DOOR UNLOCK RELAY OUTPUT
35	P701 16LG/DG	DRIVER DOOR UNLOCK RELAY OUTPUT
36	P778 16LG/LB	DOOR LOCK RELAY OUTPUT
37	A27 20RD/LB (EXCEPT EXPORT)	FUSED B(+)
38	F200 20PK/LB (EXCEPT EXPORT)	FUSED IGNITION SWITCH OUTPUT (RUN-START)
39	A116 14YL/RD (PREMIUM AUDIO)	FUSED B(+)
40	A205 14RD/OR	FUSED B(+)
