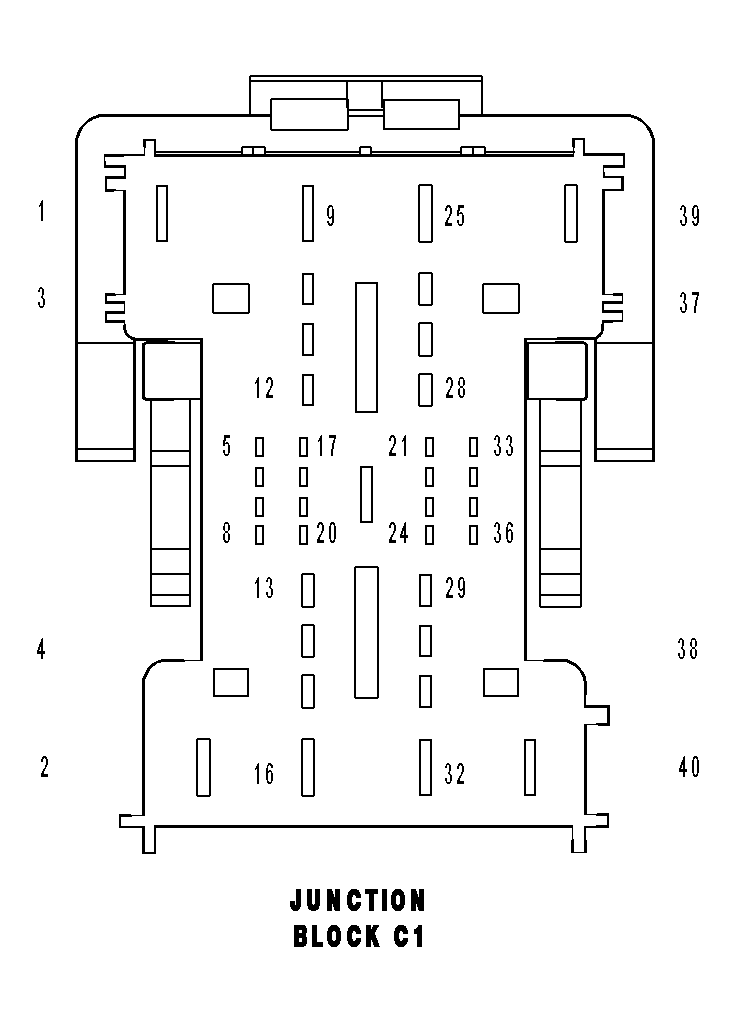

Junction Block Connector End View (C1)

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

JUNCTION BLOCK C1 - 40 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A901 12RD/TN	FUSED B(+)
2	A925 14RD/LG	FUSED B(+)
3	-	-
4	-	-
5	-	-
6	B45 18DG/OR (ESP)	STOP LAMP INHIBIT RELAY CONTROL
7	L950 20WT/LG (DIESEL)	STOP LAMP INHIBIT RELAY FEED
8	-	-
9	A902 14RD/GY	FUSED B(+)
10	A5 16RD/VT	FUSED B(+)
11	-	-
12	-	-
13	F946 20PK/DG (A/T)	TRANSMISSION CONTROL MODULE RELAY OUTPUT
14	Z387 16BK	GROUND
15	A611 14RD	FUSED B(+)
16	A930 14RD/YL	POWER OUTLET RELAY OUTPUT
17	-	-
18	L950 20WT/LG	STOP LAMP INHIBIT RELAY FEED
19	-	-
20	-	-
21	L50 18WT/TN	BRAKE LAMP SWITCH OUTPUT
22	-	-
23	F921 20PK/DB	FUSED RUN RELAY OUTPUT
24	F924 20PK/YL	FUSED IGNITION SWITCH OUTPUT (RUN)
25	A905 12RD/WT	FUSED B(+)
26	A118 16RD/OR	FUSED B(+)
27	F943 18PK/LG	FUSED IGNITION SWITCH OUTPUT (RUN-START)
28	A114 18GY/RD	FUSED B(+)
29	F923 14PK/YL	RUN RELAY OUTPUT
30	F944 18PK/TN	IGNITION SWITCH OUTPUT (RUN-START)
31	A906 12RD/OR	FUSED B(+)
32	A908 12RD/VT	FUSED B(+)
33	W12 20BR/OR	REAR WIPER RELAY CONTROL
34	-	-
35	F921 20PK/GY	FUSED RUN RELAY OUTPUT
36	F942 20PK/LG	FUSED IGNITION SWITCH OUTPUT (RUN-START)
37	P305 20LG/LB	ACCESSORY DELAY RELAY CONTROL
38	-	-
39	A906 12RD/OR	FUSED B(+)
40	A907 14RD/DB	FUSED B(+)
