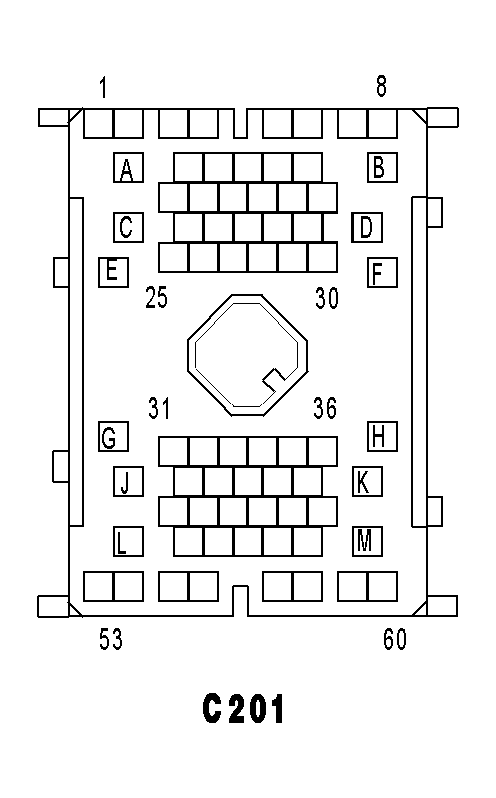

Instrument Panel Side Inline Connector End View (C201)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
C201 - (INSTRUMENT PANEL SIDE)
| CAV | CIRCUIT |
| 1 | Q80 20OR/VT |
| 2 | L1 16WT/LG |
| 3 | E2 20OR/BR |
| 4 | - |
| 5 | G80 20VT/BR |
| 6 | G76 20VT/YL |
| 7 | D54 20WT |
| 8 | D55 20WT/OR |
| 9 | M22 20YL/OR |
| 10 | D500 20WT |
| 11 | X53 18DG |
| 12 | X55 18DG/BR |
| 13 | G10 20VT/LG |
| 14 | X57 18DG/VT |
| 15 | X51 18DG/DB |
| 16 | D51 20WT/BR |
| 17 | D52 20WT/LB |
| 18 | X208 18GY/DG |
| 19 | X298 18GY/LG |
| 20 | Q102 20OR/DB |
| 21 | M28 20YL/TN |
| 22 | - |
| 23 | X209 18GY/OR |
| 24 | X299 18GY/YL |
| 25 | X54 18GY |
| 26 | X56 18GY/BR |
| 27 | Q103 20OR/LG |
| 28 | X917 20DG |
| 29 | G75 20VT |
| 30 | G94 20VT/DB |
| 31 | W14 20BR/LB |
| 32 | W13 20BR/LG |
| 33 | G161 20VT/DG |
| 34 | G4 20VT/LB |
| 35 | - |
| 36 | X17 20DG/OR |
| 37 | G160 20VT/BR |
| 38 | X16 20DG/YL |
| 39 | Q101 20OR/LB |
| 40 | X58 18GY/TN |
| 41 | X52 18GY/DB |
| 42 | G74 20VT/WT |
| 43 | - |
| 44 | D96 20WT/BK |
| 45 | - |
| 46 | G78 20VT/OR |
| 47 | - |
| 48 | L777 20WT/VT |
| 49 | - |
| 50 | - |
| 51 | Z463 20BK/LB |
| 52 | - |
| 53 | P205 16LG/DB |
| 54 | P206 16LG/TN |
| 55 | G77 20VT/GY |
| 56 | - |
| 57 | - |
| 58 | - |
| 59 | - |
| 60 | - |
| A | Z915 20BK |
| B | - |
| C | - |
| D | - |
| E | - |
| F | - |
| G | - |
| H | R21 20LB/WT |
| J | R22 20WT/LB |
| K | R23 20LB/DB |
| L | R24 20YL/LB |
| M | - |
