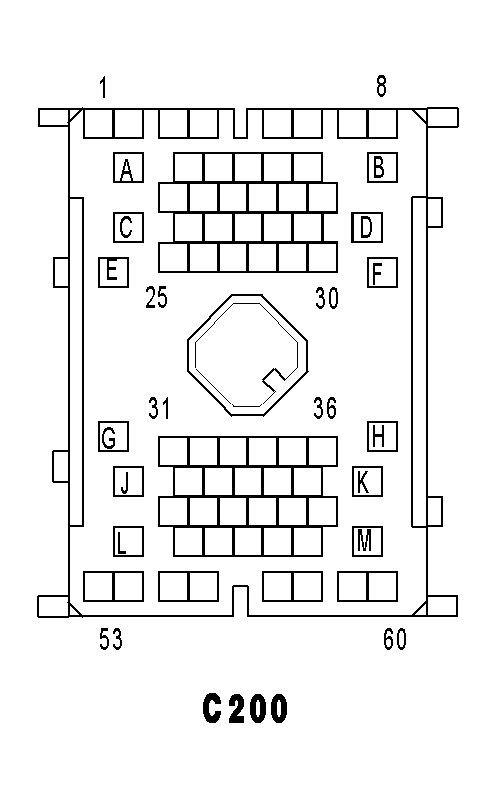

Instrument Panel Side Inline Connector End View (C200)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
C200 - (INSTRUMENT PANEL SIDE)
| CAV | CIRCUIT |
| 1 | D508 20WT/GY |
| 2 | L1 16WT/LG |
| 3 | F26 16PK/OR |
| 4 | A106 16LB/RD |
| 5 | Z172 20BK/OR |
| 6 | K504 20BR |
| 7 | A72 16RD/OR |
| 8 | - |
| 9 | V937 20VT/BR |
| 10 | G95 20VT/BR |
| 11 | D71 20WT/DB |
| 12 | D72 20WT/LB |
| 13 | L778 20WT/LB |
| 14 | F20 20PK/GY |
| 15 | D64 20WT/LB |
| 16 | D65 20WT/LG |
| 17 | B46 20DG/WT |
| 18 | G94 20VT/DB |
| 19 | Z11 20BK/LG |
| 20 | Z111 20BK/WT |
| 21 | K977 16BR/WT |
| 22 | D15 20BR/WT |
| 23 | D16 20WT/OR |
| 24 | T5 20DG/YL |
| 25 | D118 20LG/WT |
| 26 | X778 20GY/DB |
| 27 | V72 20OR/VT |
| 28 | G4 20VT/LB |
| 29 | R79 20LB/VT |
| 30 | R81 20LB/WT |
| 31 | D55 20WT/OR |
| 32 | D54 20WT |
| 33 | F100 20PK/VT |
| 34 | - |
| 35 | V71 20VT/OR |
| 36 | D778 20WT/OR |
| 37 | D51 20WT/BR |
| 38 | L91 20WT/DB |
| 39 | K900 20DB/DG |
| 40 | N4 20DB/YL |
| 41 | D96 20WT/BK |
| 42 | D52 20WT/LB |
| 43 | - |
| 44 | - |
| 45 | L777 20WT/VT |
| 46 | L13 20WT/YL |
| 47 | D223 20WT/VT |
| 48 | R80 20VT/LB |
| 49 | R82 20WT/LB |
| 50 | Z210 20BK |
| 51 | F1 20PK/WT |
| 52 | - |
| 53 | |
| 54 | K342 20BR/WT |
| 55 | K343 20BR/YL |
| 56 | - |
| 57 | - |
| 58 | - |
| 59 | B15 20DG/WT |
| 60 | T6 20DG |
| A | - |
| B | - |
| C | C7 12DB |
| D | - |
| E | N114 10DB/LB (DIESEL) |
| F | N115 10DB/YL (DIESEL) |
| G | N113 10DB/OR (DIESEL) |
| H | C105 18LB/LG |
| J | - |
| K | - |
| L | - |
| M | - |
