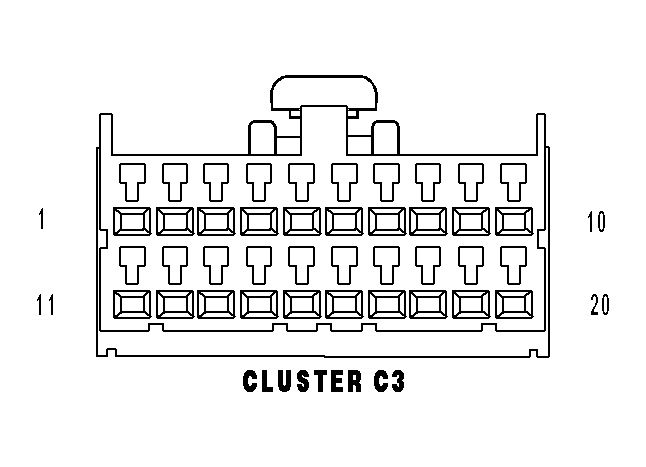

Instrument Cluster Connector End View (C3)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
CLUSTER C3 - 20 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | G80 20VT/BR | FLIP-UP GLASS AJAR SWITCH SENSE |
| 3 | G78 20VT/OR | LIFTGATE AJAR SWITCH SENSE |
| 4 | G77 20VT/GY | LEFT REAR DOOR AJAR SWITCH SENSE |
| 5 | G76 20VT/YL | RIGHT REAR DOOR AJAR SWITCH SENSE |
| 6 | G75 20VT | LEFT FRONT DOOR AJAR SWITCH SENSE |
| 7 | G74 20VT/WT | RIGHT FRONT DOOR AJAR SWITCH SENSE |
| 8 | Q80 20OR/VT | FLIP-UP GLASS SWITCH SENSE |
| 9 | D55 20WT/OR | CAN B BUS (+) |
| 10 | D54 20WT | CAN B BUS (-) |
| 11 | P365 20LG/GY (HEATED SEATS) | LEFT HEATED SEAT SWITCH SENSE |
| 12 | L24 20WT/VT | AUTO HEADLAMPS SIGNAL |
| 13 | C221 20LB/OR (MTC) | A/C SWITCH SENSE |
| 14 | P366 20LG/LB (HEATED SEATS) | RIGHT HEATED SEAT SWITCH SENSE |
| 15 | L924 20WT/TN | AUTO HEADLAMPS SIGNAL RETURN |
| 16 | P877 20TN/OR (HEATED SEATS) | SWITCH-FRONT HEATED SEAT RETURN |
| 17 | G161 20VT/DG (EXCEPT MEMORY) | DRIVER DOOR LOCK SWITCH MUX |
| 18 | G160 20VT/BR (EXCEPT MEMORY) | PASSENGER DOOR LOCK SWITCH MUX |
| 19 | Z463 20BK/LB (EXCEPT MEMORY) | DOOR LOCK SWITCH RETURN |
| 20 | - | - |
