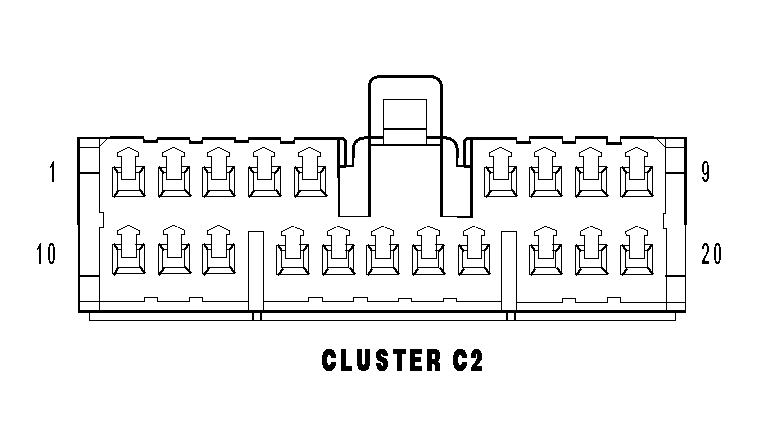

Instrument Cluster Connector End View (C2)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
CLUSTER C2 - 20 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | Z905 18BK | GROUND |
| 2 | F102 20PK/DB | IGNITION RUN RELAY CONTROL |
| 3 | Q82 20LG/OR | FLIP-UP GLASS RELAY CONTROL |
| 4 | F103 20PK/GY | IGNITION RUN/ACC RELAY CONTROL |
| 5 | P777 20LG/DG | DOOR LOCK RELAY CONTROL |
| 6 | P1 20TN/LG | DRIVER DOOR UNLOCK RELAY CONTROL |
| 7 | P292 20VT/LG | DOOR UNLOCK RELAY CONTROL |
| 8 | - | - |
| 9 | A108 20LG/RD | FUSED B(+) |
| 10 | M28 20YL/TN | GLOVE BOX LAMP DRIVER |
| 11 | - | - |
| 12 | M22 20YL/OR | COURTESY LAMPS DRIVER |
| 13 | Z905 18BK | GROUND |
| 14 | - | - |
| 15 | E2 20OR/BR | PANEL LAMPS DRIVER |
| 16 | - | - |
| 17 | L778 20WT/LB | FUSED PARK LAMP RELAY OUTPUT |
| 18 | - | - |
| 19 | Z18 20BK/LB | GROUND |
| 20 | F941 20PK/LG | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
