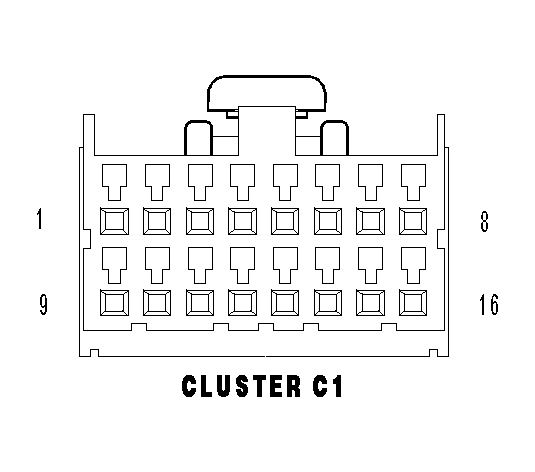

Instrument Cluster Connector End View (C1)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
CLUSTER C1 - 16 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | D500 20WT | LIN BUS |
| 2 | G102 20VT/GY | MENU SWITCH INPUT |
| 3 | G103 20VT/LB | STEP SWITCH INPUT |
| 4 | G105 20VT/YL | C/T SWITCH INPUT |
| 5 | G108 20VT/DB | RESET SWITCH INPUT |
| 6 | X774 20GY/LB (PARK ASSIST) | PARK ASSIST ON/OFF SWITCH |
| 7 | N4 20DB/YL | FUEL LEVEL SENSOR NO. 1 SIGNAL |
| 8 | Z210 20BK | GROUND |
| 9 | P81 20TN/LB | LEFT HEATED SEAT LOW INDICATOR DRIVER |
| 10 | P83 20TN/WT | LEFT HEATED SEAT HIGH INDICATOR DRIVER |
| 11 | P82 20TN/LB | RIGHT HEATED SEAT LOW INDICATOR DRIVER |
| 12 | P84 20TN/WT | RIGHT HEATED SEAT HIGH INDICATOR DRIVER |
| 13 | X775 20GY/DB (PARK ASSIST) | PARK ASSIST INDICATOR SIGNAL |
| 14 | E16 20OR/GY (MTC) | INDICATOR DIMMER SIGNAL |
| 15 | G10 20VT/LG | SEAT BELT SWITCH SENSE |
| 16 | B25 20DG/WT | PARK BRAKE SWITCH SENSE |
