Inside Rearview Mirror Connector End View (C1)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

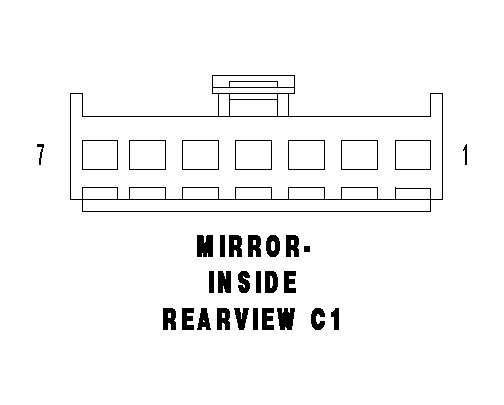

MIRROR-INSIDE REARVIEW C1 - 7 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | F921 20PK/YL | FUSED RUN RELAY OUTPUT |
| 2 | Z915 20BK | GROUND |
| 3 | L1 18WT/LG | BACK-UP LAMP FEED |
| 4 | P112 20TN/OR | AUTO DAY/NIGHT MIRROR (+) |
| 5 | P114 20TN/WT | AUTO DAY/NIGHT MIRROR (-) |
| 6 | D55 20WT/OR (SMART BEAM) | CAN B BUS (+) |
| 7 | D54 20WT (SMART BEAM) | CAN B BUS (-) |
