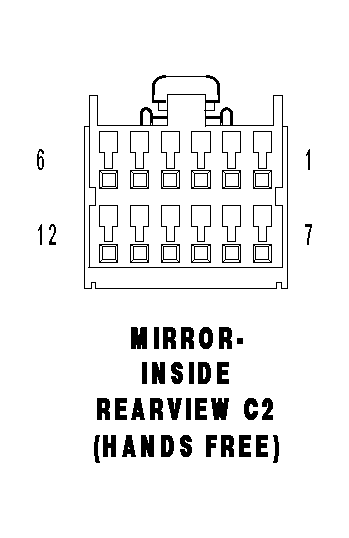

Inside Rearview Mirror (Hands Free) Connector End View (C2)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
MIRROR-INSIDE REARVIEW C2 (HANDS FREE) - 12 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | - | - |
| 3 | - | - |
| 4 | X722 20LB/DG | MICROPHONE 2 IN (+) |
| 5 | X735 20GY/LB | HANDS FREE MICROPHONE SHIELD |
| 6 | X712 20DG/LB | MICROPHONE 1 IN (+) |
| 7 | X793 20DG/OR | MICROPHONE FEED |
| 8 | - | - |
| 9 | X730 20OR/GY | VOICE RECOGNITION/PHONE SWITCH SIGNAL |
| 10 | - | - |
| 11 | X835 20OR/GY | SENSOR GROUND |
| 12 | X792 20LB/YL | MICROPHONE IN (-) |
