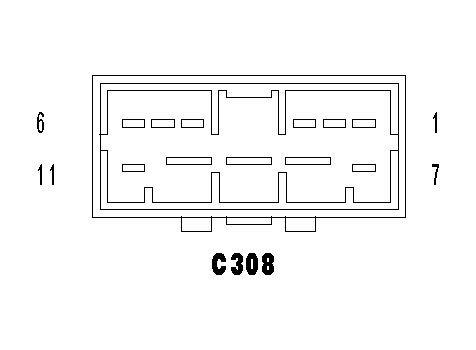

Inline (Right Rear Door Side) Connector End View (C308)

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

C308 - (RIGHT REAR DOOR SIDE)

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT
1	Q612 16OR/DB
2	Q412 16OR/LB
3	G76 20VT/YL
4	Z908 20BK
5	X206 18DG/LG
6	X296 18LG/GY
7	-
8	Q15 16OR/LB
9	P778 16LG/LB
10	P792 16LG/TN
11	-
