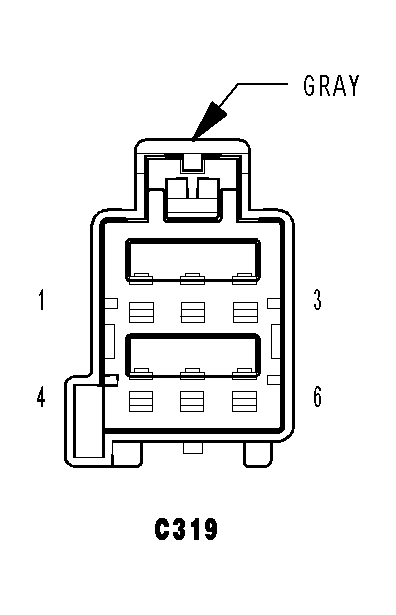

Inline (Passenger Seat Side) Connector End View (C319)

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

C319 - GRAY (PASSENGER SEAT SIDE)

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT
1	P42 16LG/GY
2	P44 16LG/VT
3	-
4	-
5	P188 16LG/VT (HEATED SEATS)
6	Z909 16BK (HEATED SEATS)
