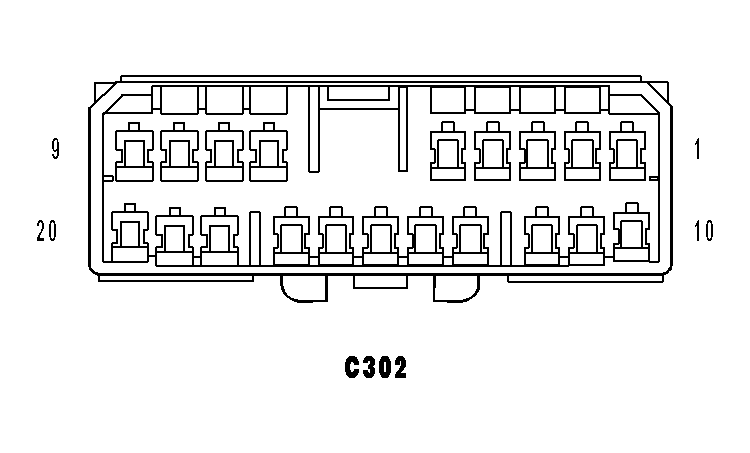

Inline (Passenger Door Side) Connector End View (C302)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
C302 - (PASSENGER DOOR SIDE)
| CAV | CIRCUIT |
| 1 | - |
| 2 | - |
| 3 | C17 20LB/DG (EXCEPT MEMORY MIRRORS) |
| 4 | - |
| 5 | G161 20VT/DG (RHD) |
| 6 | G160 20VT/BR (LHD) |
| 7 | Z908 20BK |
| 8 | P699 20LG/YL (HEATED MIRRORS) |
| 9 | - |
| 10 | - |
| 11 | - |
| 12 | P110 20LB/WT (HEATED MIRRORS) |
| 13 | Q16 16OR/TN |
| 14 | P792 16LG/TN |
| 15 | P778 16LG/LB |
| 16 | - |
| 17 | G75 20VT (RHD) |
| 18 | Q26 16OR/GY |
| 19 | G74 20VT/WT (LHD) |
| 20 | P76 20TN/LB (EXCEPT MEMORY MIRRORS) |
