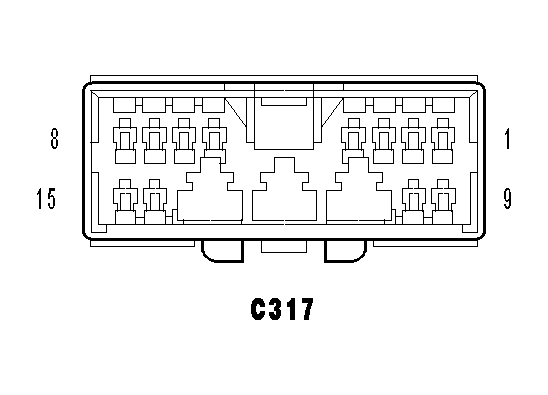

Inline (Passenger Door Jumper Side) Connector End View (C317)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
C317 - (PASSENGER DOOR JUMPER SIDE)
| CAV | CIRCUIT |
| 1 | G160 20VT/BR (LHD) |
| 1 | G161 20VT/DG (RHD) |
| 2 | P72 20TN/GY (EXCEPT MEMORY) |
| 2 | D55 20WT/OR (MEMORY) |
| 3 | P76 20TN/LB (EXCEPT MEMORY) |
| 3 | D54 20WT (MEMORY) |
| 4 | Z463 20BK/LB (EXCEPT MEMORY) |
| 4 | G74 20VT/WT (MEMORY) |
| 5 | C17 20LB/DG (EXCEPT MEMORY) |
| 5 | A931 20RD/WT (MEMORY) |
| 6 | Z908 20BK |
| 7 | - |
| 7 | P110 20LB/WT (HEATED MIRRORS) |
| 8 | - |
| 8 | P699 20LG/YL (HEATED MIRRORS) |
| 9 | Q12 16OR/BR |
| 10 | Q26 16OR/GY |
| 11 | A929 16RD/LG |
| 12 | Q22 16OR/VT |
| 13 | Q16 16OR/TN |
| 14 | Q15 16OR/LB |
| 15 | - |
