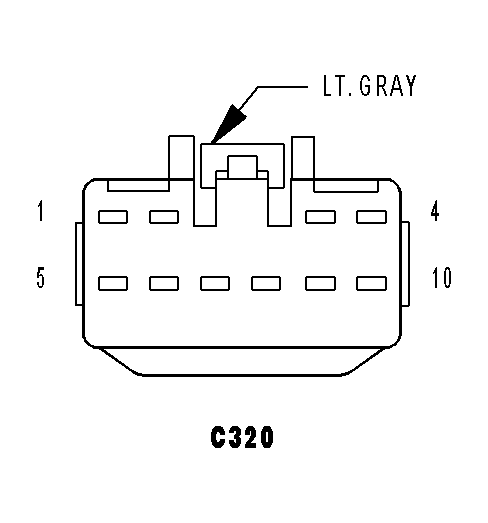

Inline (Overhead Side) Connector End View (C320)

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

C320 - LT. GRAY (OVERHEAD SIDE)

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT
1	Q6 20OR/LG
2	-
3	A932 18RD/DG
4	Q5 20OR/LB
5	Z914 16BK
6	D55 20WT/OR
7	D54 20WT
8	Q3 20OR/TN
9	Q4 20OR/YL
10	-
