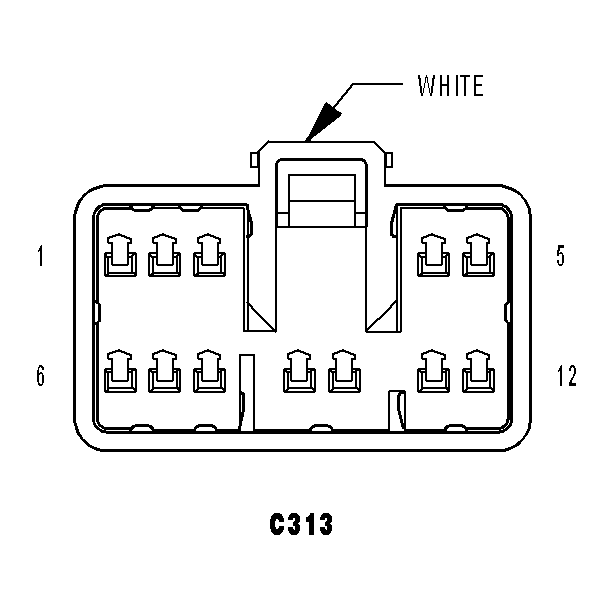

Inline (Overhead Side) Connector End View (C313)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
C313 - WHITE (OVERHEAD SIDE)
| CAV | CIRCUIT |
| 1 | S50 20GY/WT (DHS) |
| 2 | S51 20GY/DB (DHS) |
| 3 | S950 20GY/TN (DHS) |
| 4 | P112 20TN/OR (MEMORY) |
| 5 | P114 20TN/WT (MEMORY) |
| 6 | L1 18WT/LG |
| 7 | D54 20WT |
| 8 | D55 20WT/OR |
| 9 | A645 20RD/VT (EXPORT) |
| 10 | D777 20WT/GY (PARK ASSIST) |
| 11 | Z171 20GY/BK (PARK ASSIST) |
| 12 | X777 20LG/GY (PARK ASSIST) |
