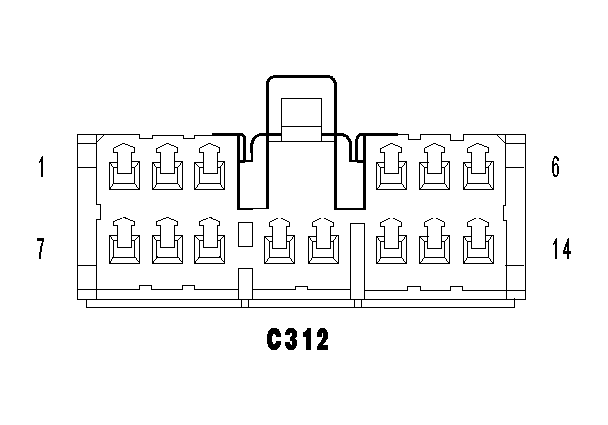

Inline (Overhead Side) Connector End View (C312)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
C312 - (OVERHEAD SIDE)
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
| 1 |
M22 20YL/OR |
| 2 |
G946 20LG/VT (EXPORT) |
| 3 |
F921 20PK/YL |
| 4 |
- |
| 5 |
- |
| 6 |
M28 20YL/TN |
| 7 |
G460 20DG/VT (EXPORT) |
| 8 |
A934 20RD/OR |
| 9 |
A931 20RD |
| 10 |
A932 18RD/DG (SUNROOF) |
| 11 |
Z915 18BK |
| 12 |
A114 18GY/RD |
| 13 |
G945 20VT/DG (EXPORT) |
| 14 |
Z914 16BK (SUNROOF) |
