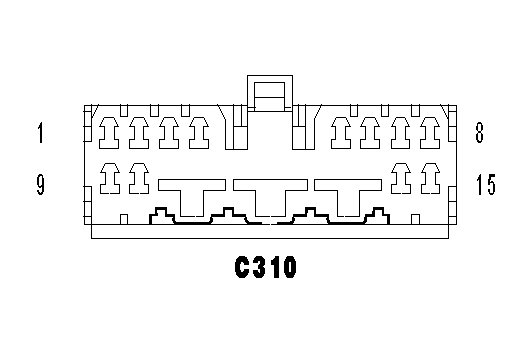

Inline (Liftgate Side) Connector End View (C310)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
C310 - (LIFTGATE SIDE)
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
| 1 |
W14 20BR/LB |
| 2 |
W13 20BR/LG |
| 3 |
G78 20VT/OR |
| 4 |
A46 18RD/GY |
| 5 |
G80 20VT/BR |
| 6 |
L50 18WT/TN |
| 7 |
L777 20WT/VT |
| 8 |
M22 20YL/OR |
| 9 |
Q80 20OR/VT |
| 10 |
P792 16LG/TN |
| 11 |
P778 16LG/LB |
| 12 |
Z800 12BK |
| 13 |
C515 12LB/OR |
| 14 |
A931 20RD/WT |
| 15 |
Q81 18OR/GY |
