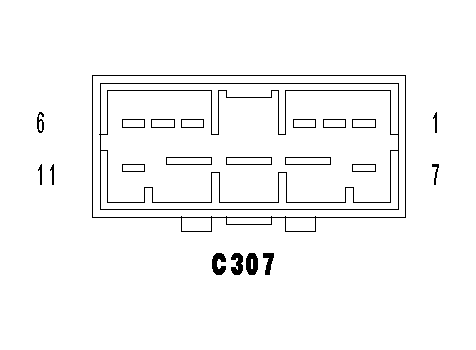

Inline (Left Rear Door Side) Connector End View (C307)

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

C307 - (LEFT REAR DOOR SIDE)

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT
1	Q611 16OR/GY
2	Q411 16OR/WT
3	G77 20VT/GY
4	Z911 20BK
5	X205 18GY/LG
6	X295 18GY/DG
7	-
8	Q15 16OR/LB
9	P778 16LG/LB
10	P792 16LG/TN
11	-
