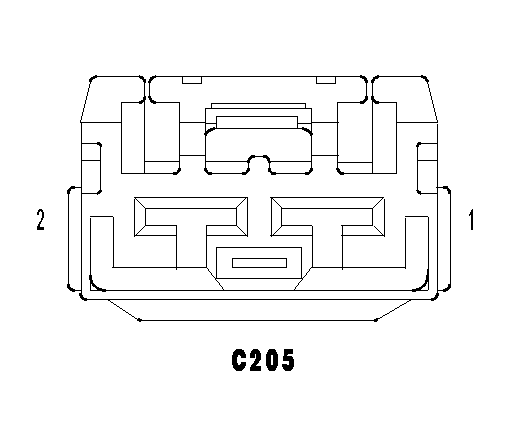

Inline (Instrument Panel Side) Connector End View (C205)

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

C205 - (INSTRUMENT PANEL SIDE)

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT
1	C7 12DB
2	Z134 12BK/LG
