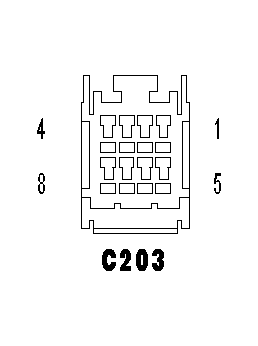

Inline (Instrument Panel Side) Connector End View (C203)

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

C203 - (INSTRUMENT PANEL SIDE)

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT
1	X712 20DG/LB
2	X722 20LB/DG
4	X793 20DG/OR
5	X730 20GY/YL
6	X735 20GY/LB
7	X835 20OR/GY
8	-
