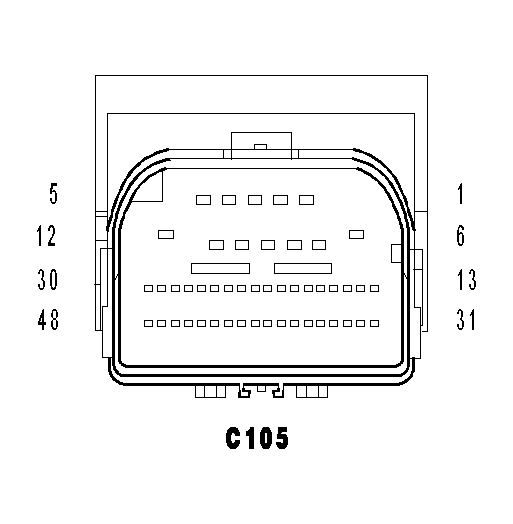

Inline (Headlamp And Dash Side) Connector End View (C105)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
C105 - (HEADLAMP AND DASH SIDE)
| CAV | CIRCUIT |
| 1 | A35 18RD/DG (EXPORT) |
| 2 | A930 14RD/YL |
| 3 | A109 16TN/RD |
| 4 | A909 14RD |
| 5 | L76 18WT/BR |
| 6 | - |
| 7 | K504 20BR (EXCEPT 3.7L) |
| 8 | B400 14DG |
| 9 | L1 18WT/LG |
| 10 | A907 14RD/DB (EXPORT) |
| 11 | L50 18WT/TN |
| 12 | - |
| 13 | D702 20WT/YL (EXPORT) |
| 14 | D708 20WT/LB (EXPORT) |
| 15 | D709 20WT/BR (EXPORT) |
| 16 | K977 20BR/LB (EXCEPT 3.7L) |
| 17 | F921 20PK/GY (DHS) |
| 18 | B1 18DG/DB |
| 19 | B2 18DG/WT |
| 20 | D54 20WT (EXCEPT 3.7L) |
| 21 | D55 20WT/OR (EXCEPT 3.7L) |
| 22 | B3 18DG/YL |
| 23 | B4 18LG/YL |
| 24 | D64 20WT/LB (EXCEPT 3.7L) |
| 25 | D65 20WT/LG (EXCEPT 3.7L) |
| 26 | F924 20PK/YL |
| 27 | G95 20VT/WT (EXPORT) |
| 28 | D706 20WT/TN (EXPORT) |
| 29 | D707 20WT/LG (EXPORT) |
| 30 | Z210 20BK |
| 31 | D705 20WT/OR (EXPORT) |
| 32 | X778 20GY/DB (EXPORT) |
| 33 | Z172 20BK/OR (EXPORT) |
| 34 | N4 20DB/YL |
| 35 | L62 18WT/OR |
| 36 | L63 18WT/DG |
| 37 | L777 20WT/BR |
| 38 | L778 20WT/DB |
| 39 | A926 18RD/TN |
| 40 | A927 18RD/BR |
| 41 | K106 20VT/LB (GAS) |
| 42 | K107 20BK/LB (GAS) |
| 43 | L614 18WT/DB |
| 44 | L615 18WT/YL |
| 45 | D508 20WT/TN |
| 46 | Z169 20BK/LG (EXPORT) |
| 47 | X702 20GY/LB (EXPORT) |
| 48 | D778 20WT/OR (EXPORT) |
