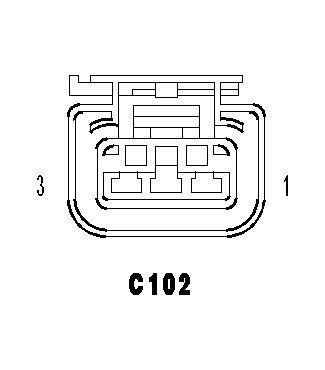

Inline (Headlamp And Dash Side) Connector End View (C102)

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

C102 - (HEADLAMP AND DASH SIDE)

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT
1	Z385 18BK (GAS)
2	K125 16BR/DG (GAS)
3	T750 12YL/GY
