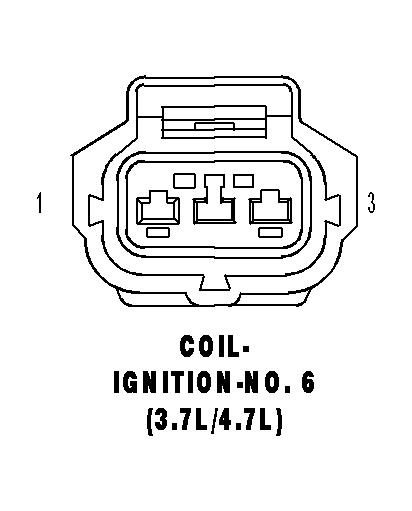

Ignition Coil 6 (3.7L/4.7L) Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

COIL-IGNITION-NO. 6 (3.7L/4.7L) - 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K10 16DB/OR	COIL CONTROL NO. 6
2	A15 16RD/TN	FUSED ASD RELAY OUTPUT
3	-	-
