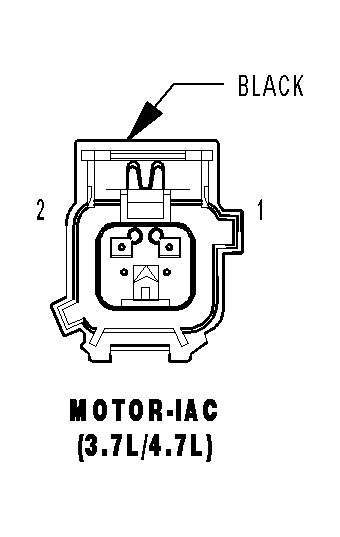

Idle Air Control Motor (3.7L/4.7L) Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

MOTOR-IAC (3.7L/4.7L) - BLACK 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K961 20BR/GY	IAC SIGNAL
2	K61 16VT/GY	IAC CONTROL
