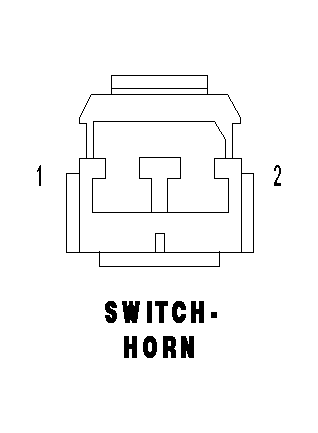

Horn Switch Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

SWITCH-HORN - 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	X3 20DG/VT	HORN SWITCH SIGNAL
2	X903 20GY/LG	HORN SWITCH RETURN
